slim - undertop sink series
stainless steel AISI 304-18/10

For Ariel , " the essential is visible to the eye " , which is drawn to the lowered controls area. A linear design with "0" degree angles and mirror finish on the bowl bottom.

REQUEST INFORMATION

Details

slim Luxury slim Luxury Installing it is as easy as laying it down. The effect is practical and light. Only touch will reveal the small perimeter edge. Elegance and functionality in the kitchen.
undertop undertop Hidden below is the most innovative and exclusive sink, suited to alternative solutions. Rectangular and circular shapes to be fastened under the worktop, making the most of the space.
satin satin

MIXER

9230MISCCRM 9230MISCCRM
mixer with remote control, under -window system
9602 9602
mixer tap with swivel spout

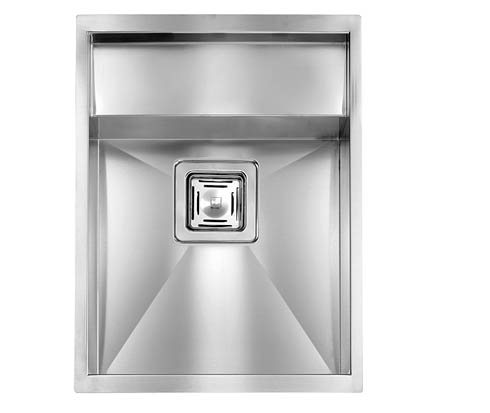

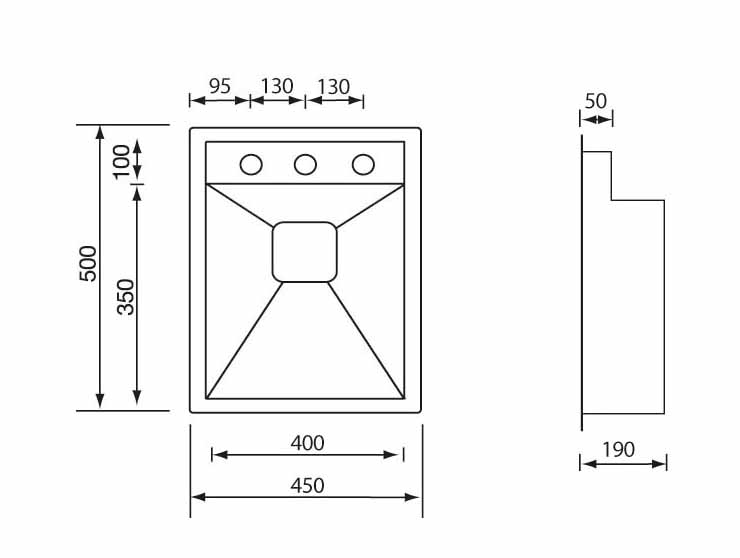

ariel 45 x 50
slim base mm 500
built-in fitting hole mm 430 x 480
undertop base mm 600
undertop fitting hole mm 400 x 450
bowl depth mm 190
square automatic pop - up waste kit with square control

technical

ariel 45 x 50

undertop installation

undertop installation

optionals

4.8

093102

stainless steel basket

mm 340 x 350

6.2

094006

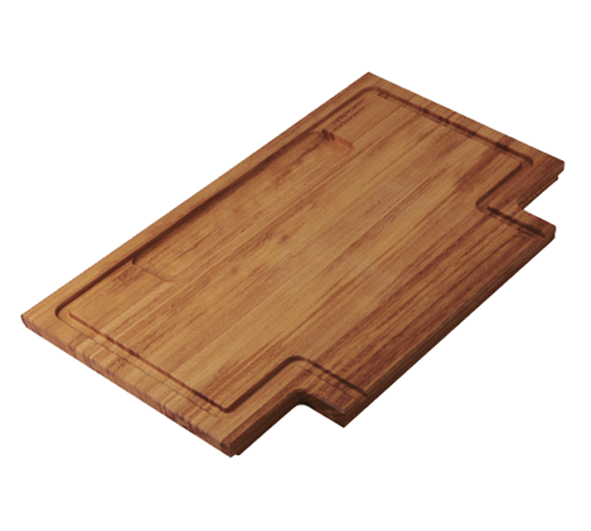

iroko chopping board

mm 270 x 450

7.1

094007

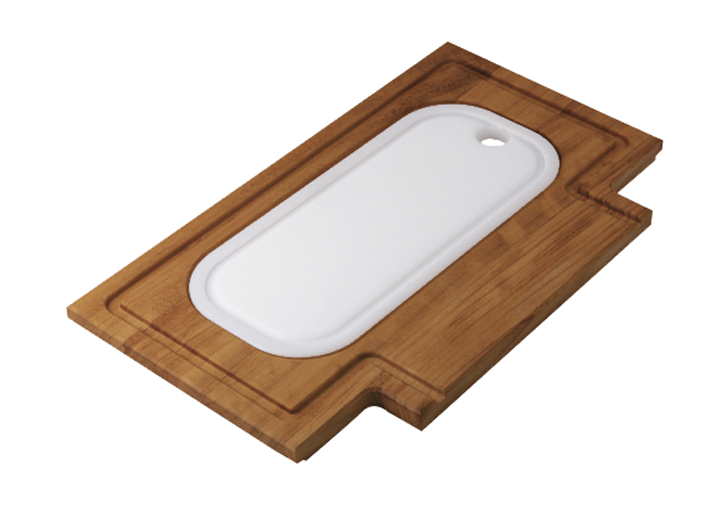

iroko and PE chopping board

mm 270 x 450

11.1

093004

stainless roll up carpet

mm 470x450

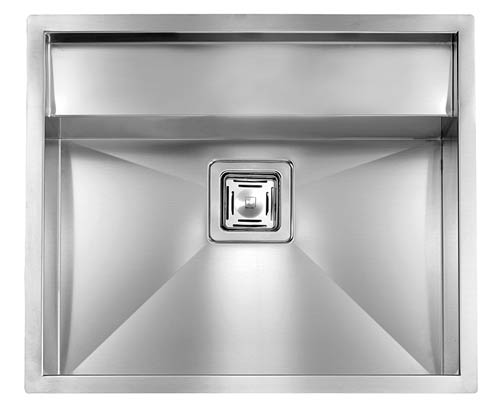

ariel 59 x 50
slim base mm 800
built-in fitting hole mm 570 x 480
undertop base mm 800
undertop fitting hole mm 540 x 450
bowl depth mm 190
square automatic pop - up waste kit with square control

technical

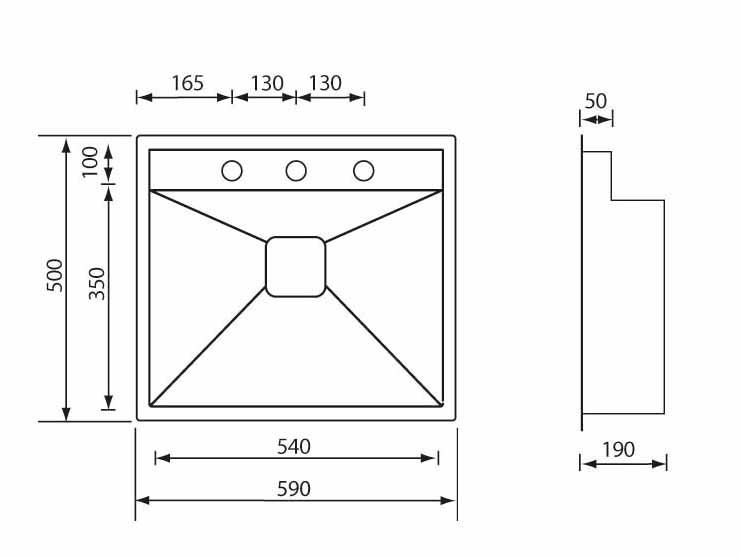

ariel 59 x 50

undertop installation

undertop installation

optionals

4.8

093102

stainless steel basket

mm 340 x 350

6.2

094006

iroko chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

7.1

094007

iroko and PE chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

11.1

093004

stainless roll up carpet

mm 470x450

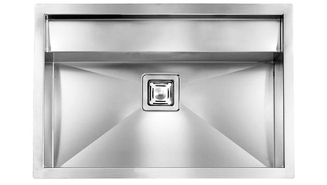

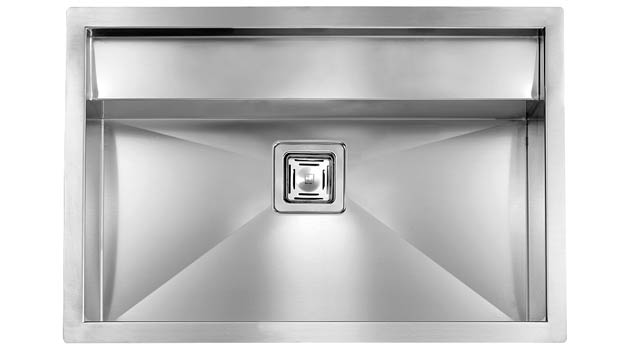

ariel 77 x 50
slim base mm 800
built-in fitting hole mm 750 x 480
undertop base mm 900
undertop fitting hole mm 720 x 450
bowl depth mm 190
square automatic pop - up waste kit with square control

technical

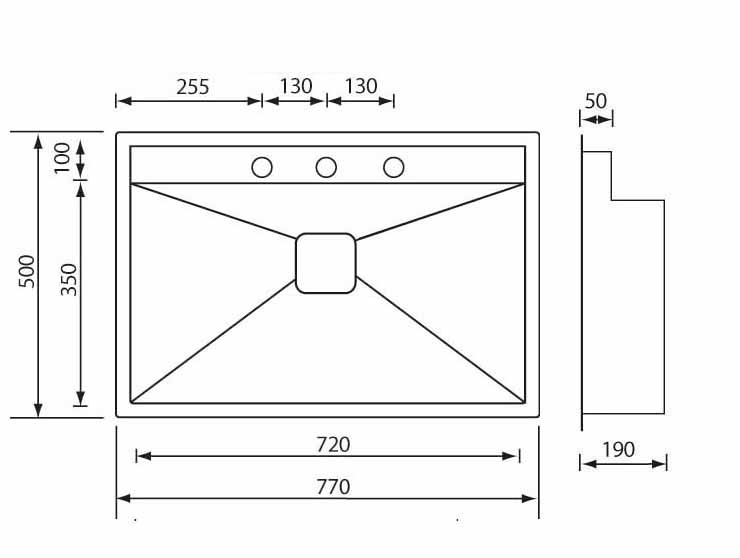

ariel 77 x 50

undertop installation

undertop installation

optionals

4.8

093102

stainless steel basket

mm 340 x 350

6.2

094006

iroko chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

7.1

094007

iroko and PE chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

11.1

093004

stainless roll up carpet

mm 470x450

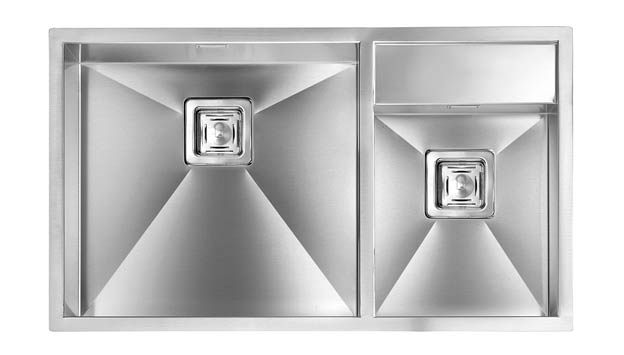

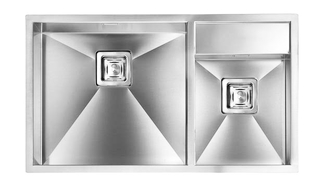

ariel 86 x 50 2V
slim base mm 900
built-in fitting hole mm 840 x 480
undertop base mm 1000
undertop fitting hole mm 810 x 450
bowls depth mm 190 - 130
right and left version
square automatic pop - up waste kit with square control

technical

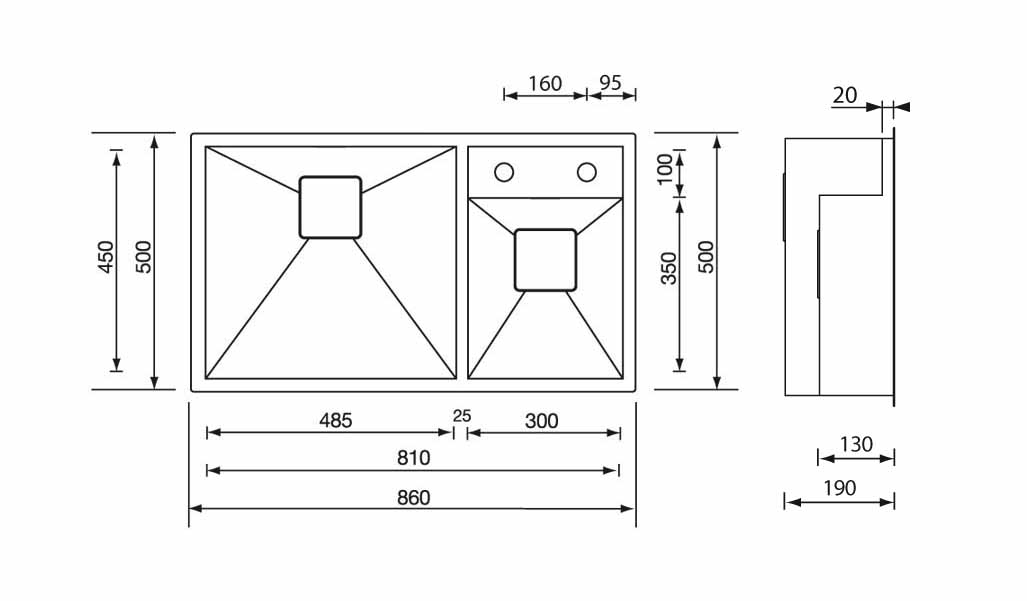

ariel 86 x 50 2V

undertop installation

undertop installation

optionals

4.1

093001

stainless steel basket

mm 380 x 450

2.8

092042

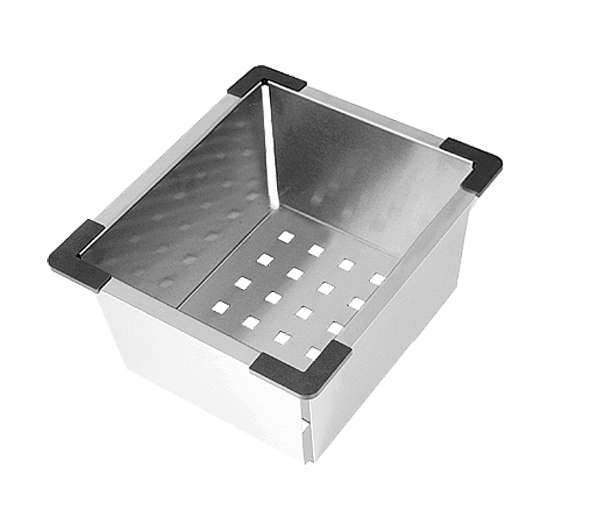

stainless steel perforated bowl

mm 310 x 310

3.10

092043

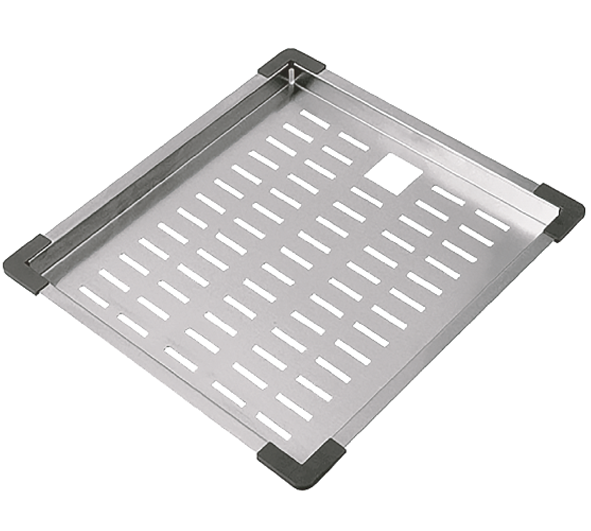

stainless steel perforated tray

mm 380 x 450

6.2

094006

iroko chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

7.1

094007

iroko and PE chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

8.1

094009

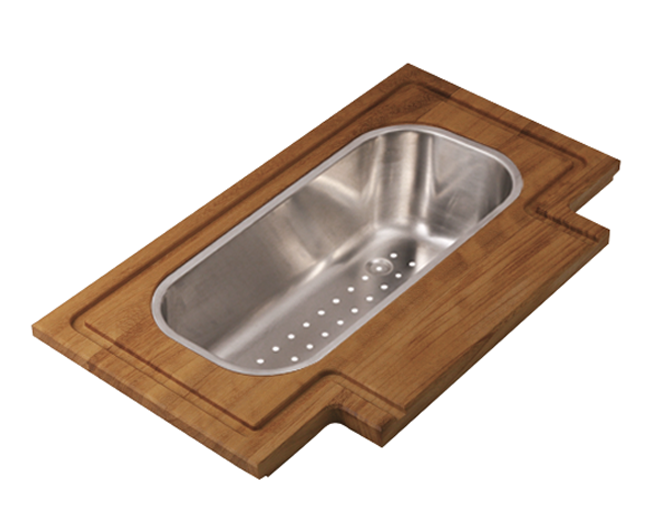

iroko and perforated bowl chopping board

mm 270 x 450

option to fittin up in couple of chopping boards

11.1

093004

stainless roll up carpet

mm 470x450
