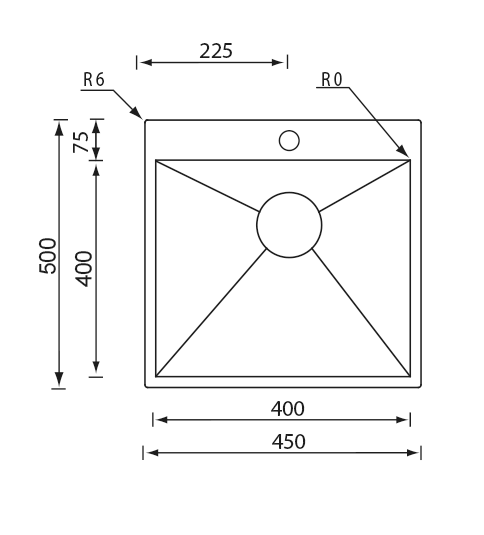

basis | mm 450 |
built-in fitting hole | mm 370 x 480 |
bowl depth | mm 190 |
Vortex manual waste kit |
optionals
basis | mm 500 |
built-in fitting hole | mm 430 x 480 |
bowl depth | mm 190 |
Vortex manual waste kit |
optionals
basis | mm 600 |
built-in fitting hole | mm 550 x 480 |
bowl depth | mm 190 |
Vortex manual waste kit |
optionals
basis | mm 800 |
built-in fitting hole | mm 590 x 480 |
bowls depth | mm 190 - 130 |
right and left version | |
the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
Vortex automatic pop -up waste kit with square control |
optionals
basis | mm 800 |
built-in fitting hole | mm 650 x 480 |
bowls depth | mm 190 - 130 |
right and left version | |
the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
Vortex automatic pop -up waste kit with square control |
optionals
basis | mm 800 |
built-in fitting hole | mm 750 x 480 |
bowl depth | mm 190 |
Vortex manual waste kit |
optionals
basis | mm 800 |
built-in fitting hole | mm 750 x 480 |
bowls depth | mm 190 |
Vortex automatic pop -up waste kit with square control |
optionals
basis | mm 900 |
built-in fitting hole | mm 770 x 480 |
bowls depth | mm 190 - 130 |
right and left version | |
the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
Vortex automatic pop -up waste kit with square control |
optionals
basis | mm 900 |
built-in fitting hole | mm 830 x 480 |
bowl depth | mm 190 |
Vortex manual waste kit |
optionals
basis | mm 1000 |
built-in fitting hole | mm 870 x 480 |
bowls depth | mm 190 |
Vortex automatic pop -up waste kit with square control |
optionals
basis | mm 900 |
built-in fitting hole | installation manual |
bowls depth | mm 190 |
right and left version | |
the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 450 / mm 500 if at beginning of kitchen |
basis 2 | mm 900 for top lower than 30 mm |
built-in fitting hole | mm 840 x 480 |
bowl depth | mm 190 |
right and left version | |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 600 |
basis 2 | mm 1200 for top lower than 30 mm |
built-in fitting hole | mm 980 x 480 |
bowl depth | mm 190 |
right and left version | |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 450 / mm 800 if at beginning of kitchen |
basis 2 | mm 1200 for top lower than 30 mm |
built-in fitting hole | mm 980 x 480 |
bowl depth | mm 190 |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 800 |
basis 2 | mm 1200 for top lower than 30 mm |
built-in fitting hole | mm 980 x 480 |
bowls depth | mm 190 - 130 |
right and left version | |
the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 600 |
basis 2 | mm 1200 for top lower than 30 mm |
built-in fitting hole | mm 980 x 480 |
bowls depth | mm 190 - 130 |
right and left version | |
the LEFT or RIGHT version refers to the position of the larger sink bowl. | |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 450 / mm 900 if at beginning of kitchen |
basis 2 | mm 1200 for top lower than 30 mm |
built-in fitting hole | mm 1140 x 480 |
bowl depth | mm 190 |
Vortex automatic pop -up waste kit with square control |
optionals
basis 1 | mm 800 |
basis 2 | mm 1200 for top lower than 30 mm |
built-in fitting hole | mm 1140 x 480 |
bowls depth | mm 190 |
right and left version | |
Vortex automatic pop -up waste kit with square control |
optionals
